Water always wins. It finds the low spot and pools there, whether your plan allows for it or not. A site that looks flat can hide slopes that steer water straight at your foundation. Topographic surveys map those slopes before they cost you.

For developers, drainage is a silent budget killer. A missed low spot can flood a slab or crack a parking lot. Fixing it after the build costs far more than catching it early. A good topo survey shows where water goes, so your design can send it somewhere safe.

Surface Features That Influence Water Movement Across a Site

Water moves by gravity and nothing else. It rolls downhill and gathers where the ground dips. Every bump, slope and dip on a site steers that flow. Small features can send water in surprising directions.

Look at what shapes the surface. Natural slopes push runoff toward the low edge of a site. Existing buildings and pavement block some paths and speed up others. Even a shallow swale can carry a lot of water in a storm.

Ground cover matters too. Bare soil soaks up less water than a planted area. Compacted dirt from old construction sheds water fast. These details add up, and they decide where puddles form after every rain.

How a Topographic Survey Reveals Hidden Drainage Patterns

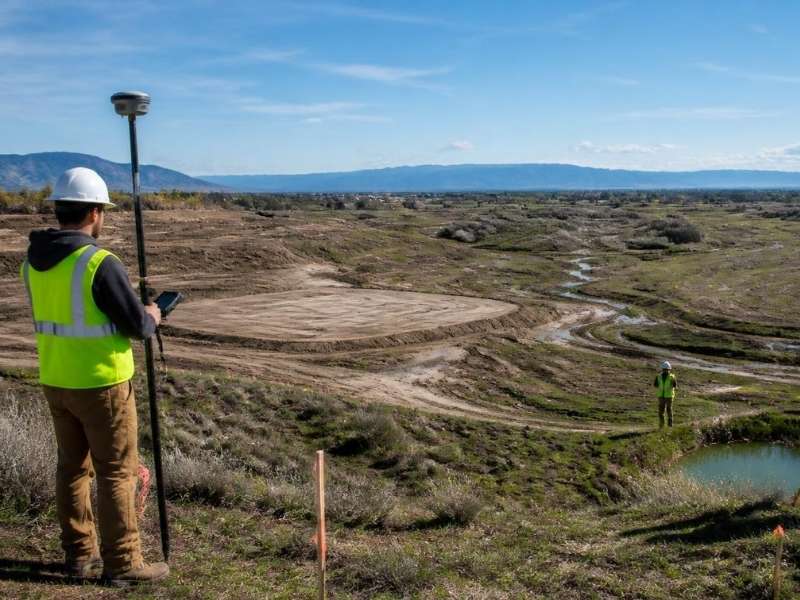

A topographic survey maps the shape of the land in detail. It records elevation across the whole site using precise points. Those points form contour lines that show every rise and dip. The result is a map of how water will move.

The survey catches what the eye misses. A slope of even one or two percent can direct real flow. You can’t judge that by standing on the lot. The contour data makes the pattern clear on paper.

It also shows where water leaves and enters the site. You see the high points that shed water and the low points that collect it. You spot where runoff crosses onto a neighbor’s land. That picture guides every drainage choice that follows.

Reading Elevation Data to Identify Potential Problem Areas

Contour lines tell a story once you know how to read them. Lines close together mean a steep slope. Lines far apart mean flat ground that drains slowly. A ring of contours around a low point marks a spot where water pools.

Certain patterns raise red flags. A low area with no outlet will hold water and turn into a pond. A steep grade near a building can dump runoff against the foundation. A flat pad with no fall will drain too slowly and stay wet.

Your surveyor and engineer read these signs together. They mark the trouble spots on the plan. That gives your team a target list before design even starts. Fixing a problem on paper costs almost nothing.

How Early Drainage Analysis Supports Better Site Design

Catching drainage issues early changes the whole design. You can grade the site to move water where you want it. Buildings go on high ground, and parking goes where runoff can drain. Good grading solves most problems before they exist.

Early data also shapes your stormwater plan. You size pipes and basins to match the real flow. You place inlets where water actually collects. Guesswork here leads to floods or fines, so real numbers pay off.

The design gets cheaper when it fits the land. Working with the slope beats fighting it with heavy fill. You move less dirt and pour less concrete. A plan built on solid elevation data wastes less of both.

Using a Topographic Survey to Reduce Future Drainage Issues

A topographic survey protects the site long after the build. It gives you a record of the original grades. If drainage trouble shows up later, you can compare and find what changed. That record speeds up any fix.

The survey also supports smart maintenance. You know where water is meant to flow, so you can keep those paths clear. You catch a clogged swale or a settled area before it floods. Small upkeep beats a big repair.

For resale, clean drainage is a selling point. Buyers and lenders worry about water damage. A site with proven drainage and solid records earns their trust. That can protect both your timeline and your price.

Frequently Asked Questions

What is a topographic survey?

A topographic survey maps the shape and elevation of a piece of land. It records high points, low points and slopes as contour lines on a drawing. Engineers and designers use it to plan grading, drainage and building placement. It shows the ground detail you can’t judge by eye.

How does a topographic survey find drainage problems?

The survey records elevation across the whole site with precise points. Those points reveal slopes, low spots and paths water will follow. A low area with no outlet or a grade aimed at a building stands out on the map. That lets your team fix the issue in design instead of after the build.

When should a developer order a topographic survey?

Order it before you design the site, not after. The elevation data shapes your grading, drainage and building layout from the first draft. Ordering late means redoing plans once the real slopes show up. Early data keeps the design on track and avoids costly changes.

Is a topographic survey different from a boundary survey?

Yes, the two answer different questions. A boundary survey marks the legal property lines. A topographic survey maps ground height and surface features. Many projects need both, and some firms can gather them on the same visit.

Can a topographic survey save money on a project?

Yes, it often pays for itself many times over. Catching a drainage problem in design costs far less than fixing a flooded slab later. Good elevation data also lets you work with the slope and move less dirt. That means lower grading costs and fewer surprises during the build.
